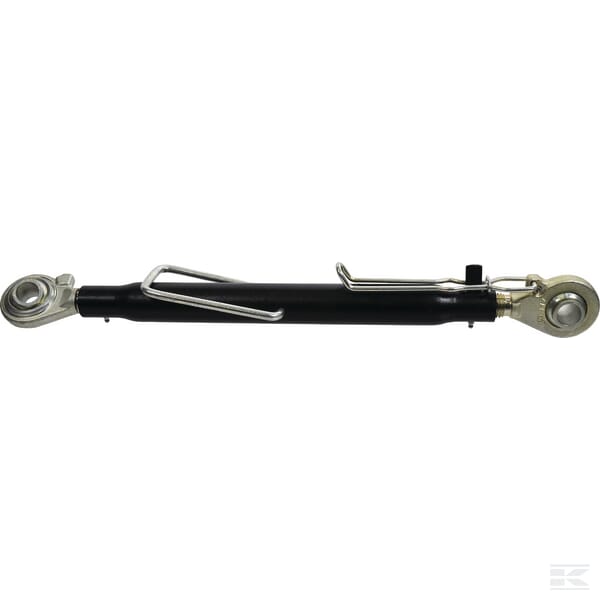

Toplink 490-M30 cat.2

Toplink 490-M30 cat.2

– M24 for tractors up to 42 kW
– M27 for tractors up to 42 kW, cat. 1
– M27 for tractors up to 75 kW, cat. 2
– M30 for tractors up to 75 kW
– M36 for tractors up to 135 kW – Zinc plated spindles
– Tube, painted black

Part number: TL4903022KR Categories: , ,
0 out of 5
(No reviews yet.)Leave a review

€88.06 Excl. VAT

Quantity

Product Description

Weight 6100 g
Dimensions 700 × 100 × 60 mm
Category by machine side | Top Links/Side Stabilizers

2
Category by tractor side | Top Links/Side Stabilizers

2
Brand | Global

Kramp
Connection hole diameter by machine side (mm) | Top Links/Side Stabilizers

25.7 mm
Connection hole diameter by tractor side (mm) | Top Links/Side Stabilizers

25.7 mm
Connections category | Top Links

Eye – Eye
Max working length (mm) | Top Links

835.00 mm
Min working length (mm) | Top Links

635.00 mm
Rod length (mm) | Top Links/Cylinders - Rods

490.0 mm
Rod outside diameter (mm) | Top Links

48.3 mm
Thread diameter (metric) | Top Links/Top Links - Ends/Top Links - Tubes/Side Stabilizers

M30
Thread pitch (mm) | Top Links/Top Links - Ends/Top Links - Tubes/Side Stabilizers/Cylinders - Join Heads

3.50 mm
Thread type | Top Links/Top Links - Tubes/Top Links - Ends

Metric
Wall thickness (mm) | Top Links

5.50 mm
