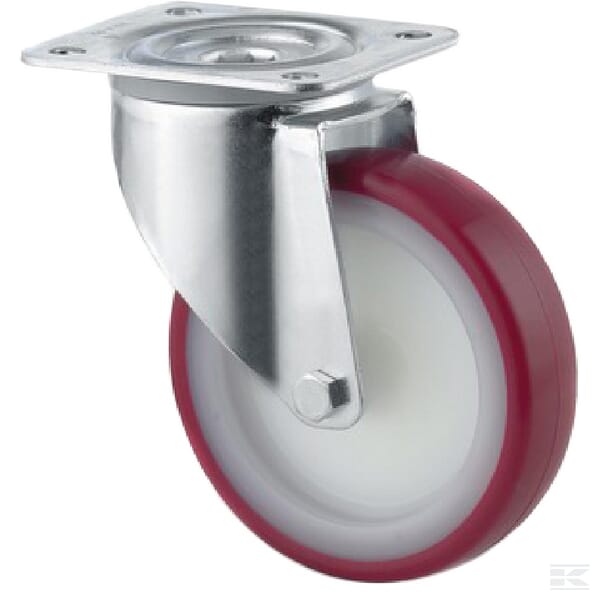

Caster wheel swivel, polyurethane wheel: Ø160x40mm, plate fitting: 137x105mm Load: 350kg, Tente

Name: Caster wheel swivel, polyurethane wheel: Ø160x40mm, plate fitting: 137x105mm Load: 350kg, Tente
SKU: 3470UAR160P63
Availability: InStock

Part number: 3470UAR160P63 Categories: Caster Wheels, Farming Supplies, Workshop Equipment

0 out of 5

(No reviews yet.)Leave a review

€97.46 Incl. VAT€79.24 Excl. VAT

Product Description

Dimensions	210 × 200 × 120 mm
Bearing type \| Caster Wheels	Roller
Body material \| Caster Wheels	Steel
Brand \| Global	Tente
Dynamic load capacity (kg) \| Caster Wheels	350 kg
EN standard \| Caster Wheels	12532
Fitting type \| Caster Wheels	Plate fitting
Max working temperature (°C) \| Caster Wheels	+60 °C
Min working temperature (°C) \| Caster Wheels	-30 °C
Mounting holes diameter (mm) \| Caster Wheels	11.0 mm
Mounting holes distance (mm) \| Caster Wheels	75-80 mm
Mounting holes distance - length side (mm) \| Caster Wheels	105-105 mm
Offset (mm) \| Caster Wheels	55.0 mm
Plate length (mm) \| Caster Wheels/Wheels - Yokes	137 mm
Plate width (mm) \| Caster Wheels/Wheels - Yokes	105 mm
Total height (mm) \| Caster Wheels	200.0 mm
Type \| Caster Wheels	Swivel wheel
Weight (kg) \| Caster Wheels	1.926 kg
Wheel diameter (mm) \| Caster Wheels	160 mm
Wheel material \| Caster Wheels	Polyurethane
Wheel width (mm) \| Caster Wheels	40.0 mm
With break \| Caster Wheels	No
