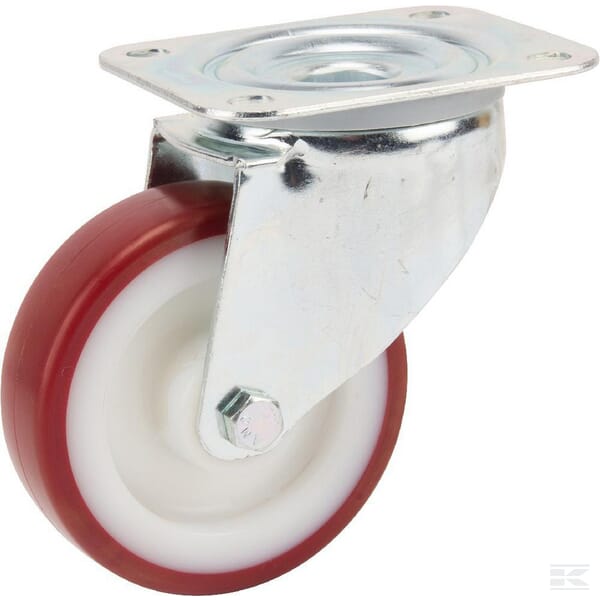

Caster wheel swivel, polyurethane wheel: Ø100x32mm, plate fitting: 105x85mm Load: 150kg, Tente

Name: Caster wheel swivel, polyurethane wheel: Ø100x32mm, plate fitting: 105x85mm Load: 150kg, Tente
SKU: 3470UAR100P62
Availability: InStock

Part number: 3470UAR100P62 Categories: Caster Wheels, Farming Supplies, Workshop Equipment

0 out of 5

(No reviews yet.)Leave a review

€58.98 Incl. VAT€47.95 Excl. VAT

Product Description

Dimensions	144 × 84 × 127 mm
Bearing type \| Caster Wheels	Roller
Body material \| Caster Wheels	Steel
Brand \| Global	Tente
Dynamic load capacity (kg) \| Caster Wheels	150 kg
EN standard \| Caster Wheels	12532
Fitting type \| Caster Wheels	Plate fitting
Max working temperature (°C) \| Caster Wheels	+60 °C
Min working temperature (°C) \| Caster Wheels	-30 °C
Mounting holes diameter (mm) \| Caster Wheels	9.0 mm
Mounting holes distance (mm) \| Caster Wheels	60-60 mm
Mounting holes distance - length side (mm) \| Caster Wheels	77-80 mm
Offset (mm) \| Caster Wheels	41.0 mm
Plate length (mm) \| Caster Wheels/Wheels - Yokes	105 mm
Plate width (mm) \| Caster Wheels/Wheels - Yokes	85 mm
Total height (mm) \| Caster Wheels	128.0 mm
Type \| Caster Wheels	Swivel wheel
Weight (kg) \| Caster Wheels	0.814 kg
Wheel diameter (mm) \| Caster Wheels	100 mm
Wheel material \| Caster Wheels	Polyurethane
Wheel width (mm) \| Caster Wheels	32.0 mm
With break \| Caster Wheels	No
