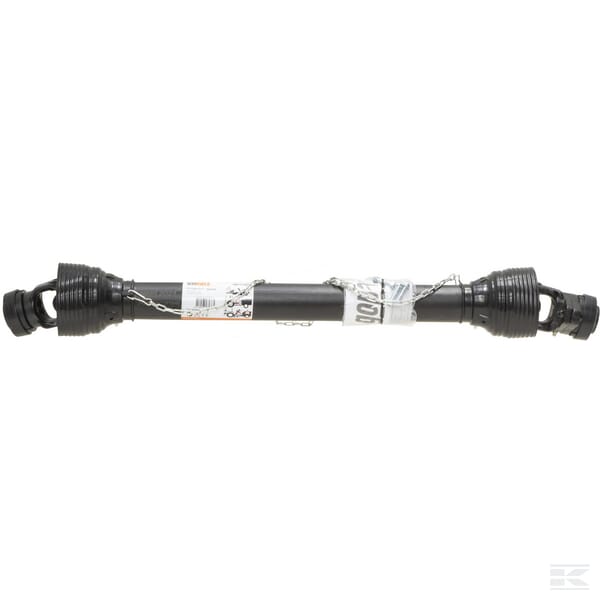

PTO shaft PTO 50 L: 1210mm with shear bolt clutch, gopart
PTO40
– Max. dynamic capacity 540 rpm: 26kW, 460Nm
– Max. dynamic capacity 1000 rpm: 40kW, 380Nm
PTO50
– Max. dynamic capacity 540 rpm: 35kW, 620Nm
– Max. dynamic capacity 1000 rpm: 54kW, 515Nm
PTO60
– Max. dynamic capacity 540 rpm: 47kW, 830Nm
– Max. dynamic capacity 1000 rpm: 74kW, 710Nm*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take 24-48 hours to deliver. – Cost-effective alternative in lower power range- Fulfils all international safety requirements
Product Description
| Weight | 18500 g |
|---|---|
| Dimensions | 1500 × 160 × 160 mm |
| Attachment by machine side | PTO Shafts | Shear bolt clutch |
| Attachment by tractor side | PTO Shafts | Quick disconnect yoke |
| Brand | Global | gopart |
| Connection number of splines/grooves by machine side | PTO Shafts/Shear Bolt Clutches | 6 |
| Connection number of splines/grooves by tractor side | PTO Shafts/Shear Bolt Clutches | 6 |
| Connection outside diameter by machine side (in) | PTO Shafts/Shear Bolt Clutches | 1-3/8 in |
| Connection outside diameter by tractor side (in) | PTO Shafts/Shear Bolt Clutches | 1-3/8 in |
| Cross joint bush diameter by machine side (mm) | PTO Shafts/Shear Bolt Clutches | 30.2 mm |
| Cross joint bush diameter by tractor side (mm) | PTO Shafts/Friction Clutches | 30.2 mm |
| Cross joint length by machine side (mm) | PTO Shafts | 79.6 mm |
| Cross joint length by tractor side (mm) | PTO Shafts | 79.6 mm |
| Inner tube large outer diameter (mm) | PTO Shafts | 45.0 mm |
| Inner tube wall thickness (mm) | PTO Shafts/PTO Shafts - Guards | 3.8 mm |
| Length (mm) | PTO Shafts/Cardan Shafts | 1210 mm |
| Locking type by machine side | PTO Shafts/Shear Bolt Clutches | Collar lock |
| Locking type by tractor side | PTO Shafts/Shear Bolt Clutches | Collar lock |
| Max static torque (Nm) | PTO Shafts/Friction Clutches/Joints | 220 N·m |
| Outer tube large outer diameter (mm) | PTO Shafts | 51.5 mm |
| Outer tube wall thickness (mm) | PTO Shafts/PTO Shafts - Guards | 3.0 mm |
| Power per 1000 rpm | PTO Shafts | 54 kW |
| Power per 540 rpm | PTO Shafts | 35 kW |
| Profile tube shape | Yokes/PTO Shafts | Triangular |
| Size code | PTO Shafts | PTO 50 |
