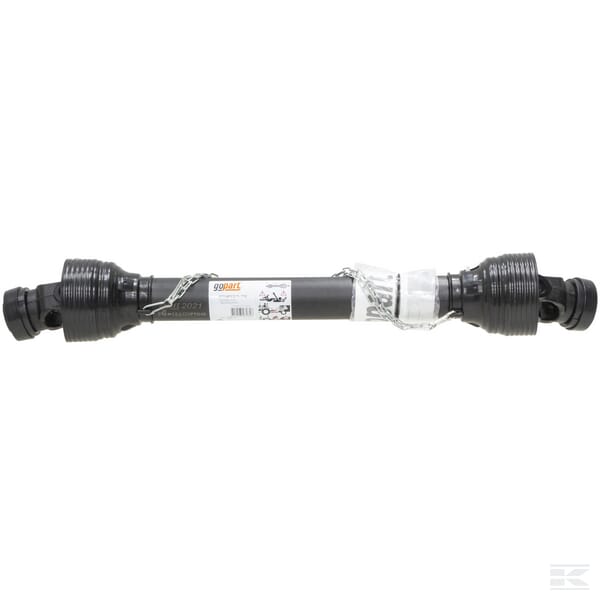

PTO shaft PTO 40 L: 1210mm, gopart

‘- Meets all international safety requirements
– Provided with “CE” marking
– Max. dyn. power 540 rpm: 26kW – 460Nm
– Max. dyn. Power 1000 rpm: 40kW – 380Nm*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take 24-48 hours to deliver. – Wood splitter
– Crop sprayer
– Chemical fertiliser spreaders
– Fertiliser spreaders – Cost-effective alternative in lower capacity range- Fulfils all international safety requirements
– CE marking available

Part number: PTO40Y21T1210GP Categories: , ,
0 out of 5
(No reviews yet.)Leave a review

199.61 Excl. VAT

Quantity

Product Description

Weight 13000 g
Dimensions 1570 × 130 × 130 mm
Attachment by machine side | PTO Shafts

Quick disconnect yoke

Attachment by tractor side | PTO Shafts

Quick disconnect yoke

Brand | Global

gopart

Connection number of splines/grooves by machine side | PTO Shafts/Shear Bolt Clutches

6

Connection number of splines/grooves by tractor side | PTO Shafts/Shear Bolt Clutches

6

Connection outside diameter by machine side (in) | PTO Shafts/Shear Bolt Clutches

1-3/8 in

Connection outside diameter by tractor side (in) | PTO Shafts/Shear Bolt Clutches

1-3/8 in

Cross joint bush diameter by machine side (mm) | PTO Shafts/Shear Bolt Clutches

27.0 mm

Cross joint bush diameter by tractor side (mm) | PTO Shafts/Friction Clutches

27.0 mm

Cross joint length by machine side (mm) | PTO Shafts

74.6 mm

Cross joint length by tractor side (mm) | PTO Shafts

74.6 mm

Inner tube large outer diameter (mm) | PTO Shafts

36.0 mm

Inner tube wall thickness (mm) | PTO Shafts/PTO Shafts - Guards

4.5 mm

Locking type by machine side | PTO Shafts/Shear Bolt Clutches

Collar lock

Locking type by tractor side | PTO Shafts/Shear Bolt Clutches

Collar lock

Max dynamic torque (Nm) | PTO Shafts/Friction Clutches/Joints/Cardan Shafts

780.0 N·m

Outer tube large outer diameter (mm) | PTO Shafts

43.5 mm

Outer tube wall thickness (mm) | PTO Shafts/PTO Shafts - Guards

3.4 mm

Power per 1000 rpm | PTO Shafts

40 kW

Power per 540 rpm | PTO Shafts

26 kW

Profile tube shape | Yokes/PTO Shafts

Triangular

Size code | PTO Shafts

PTO 40
