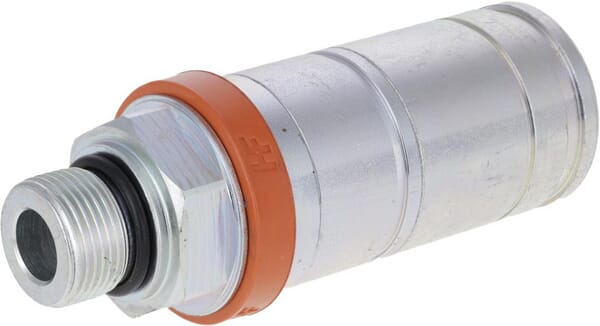

Quick release coupling Female M22x1.5

Name: Quick release coupling Female M22x1.5
SKU: 3CFHF0812215F
Availability: InStock

0 out of 5

(No reviews yet.)Leave a review

€84.22 Incl. VAT€68.47 Excl. VAT

Product Description

Weight	525 g
Dimensions	115 × 42 × 42 mm
Body size (in) \| Quickcouplings push-pull	1/2 in
Body size (mm) \| Quickcouplings push-pull	12.5 mm
Brand \| Global	Faster
Connection no 1 hex size (in) \| Couplings	1.26 in
Connection no 1 thread diameter (metric) \| Couplings	M22
Connection no 1 thread pitch (mm) \| Couplings	1.50 mm
Connection no 1 thread type code \| Couplings	1
Connection no 1 thread type \| Couplings	Metric
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type \| Couplings/Caps/Plugs	Thread
Connection no 1 wrench size (mm) \| Couplings	32.0 mm
Connection no 2 diameter (in) \| Couplings	1.65 in
Connection no 2 diameter (mm) \| Couplings	42.0 mm
Connection no 2 type - male/female \| Couplings	Female
Connection no 2 type \| Couplings	Quick coupling
Flow rate at 2 bar (l/min) \| Quickcouplings push-pull	70.0 l/min
ISO standard \| Couplings	6149-2, 7241-A
Label colour code \| Gobal	3 – Light blue
Material \| Couplings/Ferrules	Steel
Max working pressure (bar) \| Couplings	250.0 bar
Max working temperature (°C) \| Couplings	116 °C
Min working temperature (°C) \| Couplings	-25 °C
Quick connection locking type \| Quickcouplings push-pull	Radial balls
Quick connection working type \| Quickcouplings push-pull	Push to connect
Quick disconnection working type \| Quickcouplings push-pull	Pull to disconnect
Seal material \| Couplings/Nozzles	Polyurethane
Shape \| Couplings	Straight – 2 connection sides
Valve type \| Couplings	Poppet
Working pressure (bar) \| Couplings	250 bar
