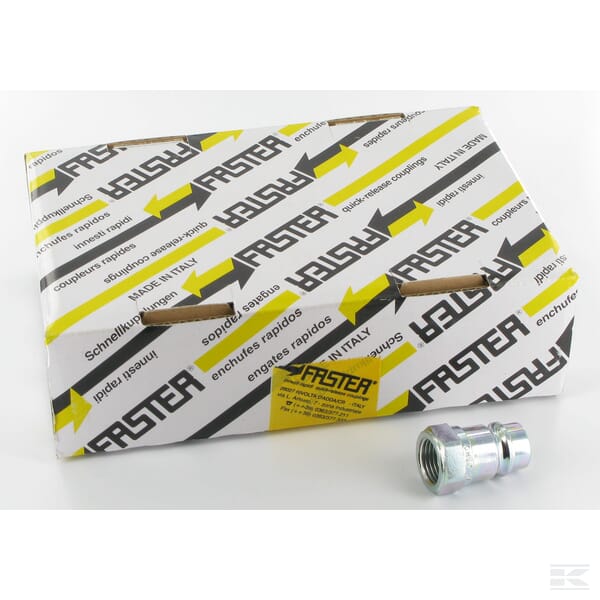

QRC male 1/2" - 12.5 - 1/2 BSP pack 40

QRC male 1/2″ – 12.5 – 1/2 BSP pack 40

‘- Cannot be connected under pressure
– Mineral oil-based fluids
– Axial actuation of locking sleeve to rear (single acting)
– Induction hardened stressed parts
– No breakaway function
– Large number of latching balls

Part number: NV12GASMP040 Categories: , ,
0 out of 5
(No reviews yet.)Leave a review

€126.68 Excl. VAT

Quantity

Product Description

Weight 3356 g
Dimensions 233 × 155 × 80 mm
Body size (in) | Quickcouplings push-pull

1/2 in
Body size (mm) | Quickcouplings push-pull

12.5 mm
Brand | Global

Faster
Connectable under pressure | Couplings

No
Connection no 1 diameter (inch) | Couplings

0.81 in
Connection no 1 diameter (mm) | Couplings/Exhaust Fittings

20.5 mm
Connection no 1 hex size (in) | Couplings

1.06 in
Connection no 1 hex size (mm) | Couplings

27.0 mm
Connection no 1 thread diameter (in) | Couplings

1/2 in
Connection no 1 thread type | Couplings

BSP
Connection no 1 type - male/female | Couplings

Male
Connection no 1 type | Couplings/Caps/Plugs

Quick coupling
Connection no 2 thread diameter (in) | Couplings

1/2 in
Connection no 2 thread type | Couplings

BSPP
Connection no 2 threads per inch | Couplings

14
Connection no 2 type - male/female | Couplings

Female
Connection no 2 type | Couplings

Thread
Content per multi-package (pcs) | Global

40 pcs
Flow rate at 2 bar (l/min) | Quickcouplings push-pull

75.0 l/min
ISO standard | Couplings

1179-1, 724-A
Label colour code | Gobal

0 – Red
Length (mm) | Couplings/Lubricators/Oil drains Powered - Nipples/Couplings/Reducers

44.0 mm
Material | Couplings/Ferrules

Steel
Max working temperature (°C) | Couplings

125 °C
Min working temperature (°C) | Couplings

-25 °C
Outside diameter (in) | Couplings

1.18 in
Outside diameter (mm) | Couplings

30.00 mm
Quick connection locking type | Quickcouplings push-pull

Radial balls
Quick connection working type | Quickcouplings push-pull

Sleeve retraction
Quick disconnection working type | Quickcouplings push-pull

Sleeve retraction
Seal material | Couplings/Nozzles

Nitrile rubber [NBR]
Series | Couplings

AGRI
Shape | Couplings

Straight – 2 connection sides
Size code | Caps/Plugs/Couplings

BG 3
Surface treatment | Couplings/Ferrules/Nipples/Reducers

Chromium-plated
Total length (in) | Couplings

1.73 in
Total length (mm) | Couplings

78.0 mm
Valve type | Couplings

Poppet
Weight (g) | Couplings

80.5 g
