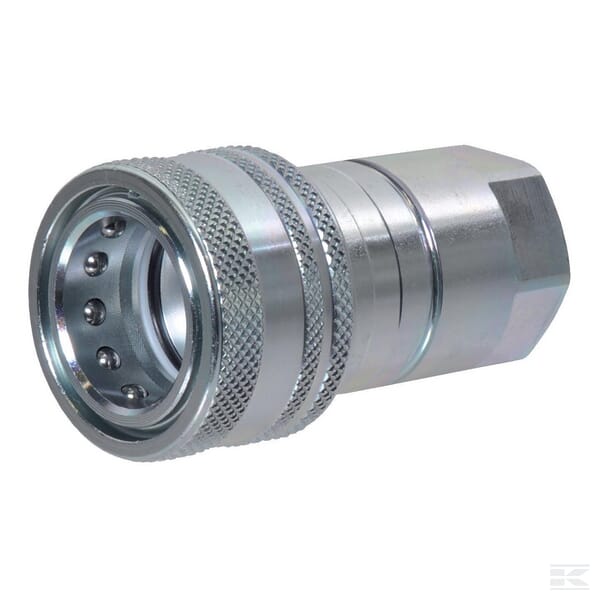

QRC female 1/2" - 12,5 - 1/2 BSP

QRC female 1/2″ – 12,5 – 1/2 BSP

‘- Axial actuation of locking sleeve to rear (single acting)
– Induction hardened stressed parts
– No breakaway function
– Large number of latching balls
– Mineral oil-based fluids- Easy to operate
– Simple coupling with very light spring in coupling sleeve

Part number: NV12GASF Categories: , ,
0 out of 5
(No reviews yet.)Leave a review

€16.63 Excl. VAT

Quantity

Product Description

Weight 254 g
Dimensions 67 × 38 × 38 mm
Body size (in) | Quickcouplings push-pull

1/2 in
Connectable under pressure | Couplings

No
Brand | Global

Faster
Connection no 1 diameter (mm) | Couplings/Exhaust Fittings

38.0 mm
Connection no 1 type - male/female | Couplings

Female
Connection no 1 type | Couplings/Caps/Plugs

Quick coupling
Connection no 2 thread diameter (in) | Couplings

1/2 in
Connection no 2 thread type | Couplings

BSPP
Connection no 2 threads per inch | Couplings

14
Connection no 2 type - male/female | Couplings

Female
Connection no 2 type | Couplings

Thread
Flow rate at 2 bar (l/min) | Quickcouplings push-pull

75.0 l/min
ISO standard | Couplings

7241-A
Label colour code | Gobal

1 – Dark blue
Material | Couplings/Ferrules

Steel
Max working temperature (°C) | Couplings

125 °C
Min working temperature (°C) | Couplings

-25 °C
Outside diameter (mm) | Couplings

38.0 mm
Seal material | Couplings/Nozzles

Nitrile rubber [NBR], Teflon (PTFE)
Shape | Couplings

Straight – 2 connection sides
Size code | Caps/Plugs/Couplings

BG 3
Surface treatment | Couplings/Ferrules/Nipples/Reducers

White passivated
Total length (mm) | Couplings

66.0 mm
Working pressure (bar) | Couplings

300 bar
