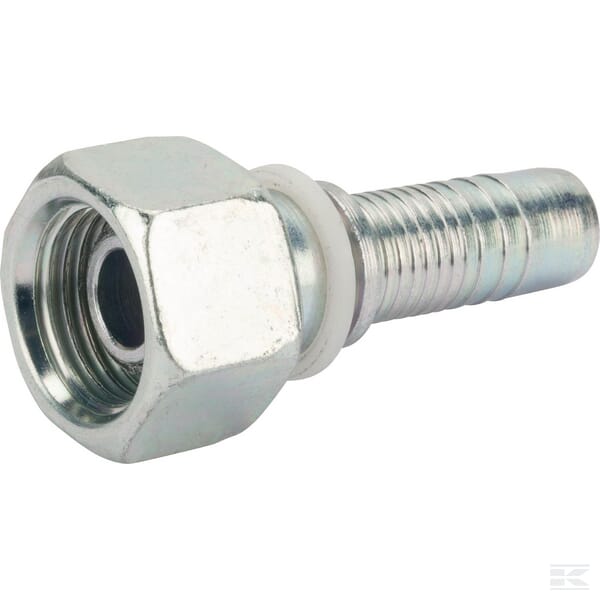

Insert DN13-1/2 BSP

Name: Insert DN13-1/2 BSP
SKU: PF138
Availability: InStock

‘- O-ring seal

0 out of 5

(No reviews yet.)Leave a review

€2.62 Incl. VAT€2.13 Excl. VAT

Product Description

Weight	86 g
Dimensions	60 × 25 × 25 mm
Cone angle (°) \| Couplings	60 °
Connection center to insert distance (mm) \| Couplings	18.6 mm
Brand \| Global	Alfagomma
Connection no 1 thread diameter (in) \| Couplings	1/2 in
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Female
Connection no 1 type code \| Couplings	DKOR
Connection no 1 type \| Couplings/Caps/Plugs	Cone
Connection no 1 wrench size (mm) \| Couplings	27.0 mm
Connection no 2 diameter (in) \| Couplings	1/2 in
Connection no 2 diameter (mm) \| Couplings	13.0 mm
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Hose end
Height (mm) \| Couplings	27.00 mm
ISO standard \| Couplings	228
Label colour code \| Gobal	1 – Dark blue
Material \| Couplings/Ferrules	Steel
Shape \| Couplings	Straight – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	White passivated, Zinc-plated
