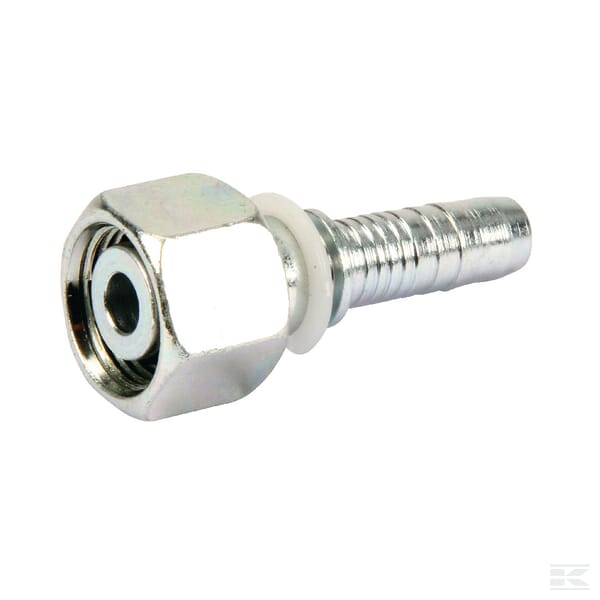

Insert DN10-M18x1.5-12L

Name: Insert DN10-M18x1.5-12L - BVS Parts Ltd
SKU: PGLO1018
Price: 4.00 EUR
Availability: InStock

‘- Cone, sealing cone with O-ring seal
– Cutting ring adaptors L series

0 out of 5

(No reviews yet.)Leave a review

€4.00 Incl. VAT€3.25 Excl. VAT

Product Description

Weight	50 g
Dimensions	52 × 25 × 22 mm
Cone angle (°) \| Couplings	24 °
Connection no 1 length (mm) \| Couplings	25.4 mm
Brand \| Global	Alfagomma
Connection no 1 thread diameter (metric) \| Couplings	M18
Connection no 1 thread pitch (mm) \| Couplings	1.50 mm
Connection no 1 type - male/female \| Couplings	Female
Connection no 1 type \| Couplings/Caps/Plugs	O-ring cone, Swivel nut
Connection no 1 wrench size (mm) \| Couplings	22.0 mm
Connection no 2 diameter (in) \| Couplings	3/8 in
Connection no 2 diameter (mm) \| Couplings	10.0 mm
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Hose end
Label colour code \| Gobal	3 – Light blue
Material \| Couplings/Ferrules	Steel
Series \| Couplings	12L
Shape \| Couplings	Straight – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	White passivated, Zinc-plated
