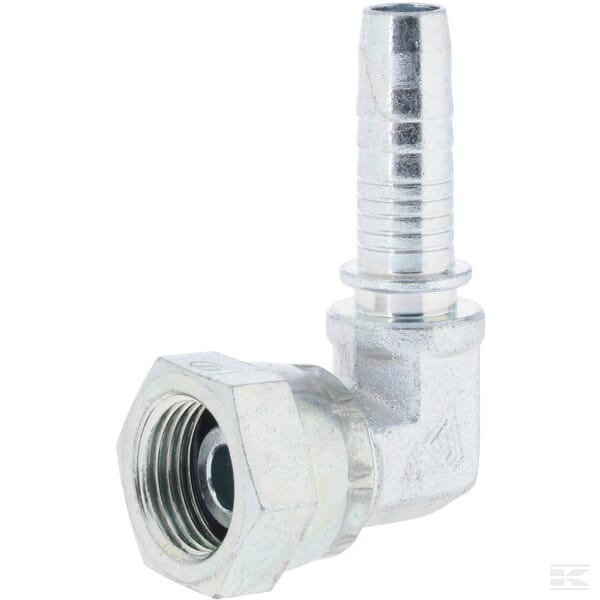

Insert DN10-3/8 BSP-90°

Name: Insert DN10-3/8 BSP-90°
SKU: PF10690S
Availability: InStock

‘- Low elbow – O-ring seal – Suitable for confined installation spaces

0 out of 5

(No reviews yet.)Leave a review

€9.55 Incl. VAT€7.76 Excl. VAT

Product Description

Weight	70 g
Dimensions	60 × 37 × 27 mm
Angle (°) \| Couplings	90.0 °
Cone angle (°) \| Couplings	60 °
Brand \| Global	Alfagomma
Connection center to insert distance (mm) \| Couplings	19.5 mm
Connection no 1 diameter (in) \| Couplings/Exhaust Fittings	3/8 in
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Female
Connection no 1 type code \| Couplings	DKOR
Connection no 1 type \| Couplings/Caps/Plugs	Cone
Connection no 1 wrench size (mm) \| Couplings	22.0 mm
Connection no 2 center to end distance (mm) \| Couplings	21.5 mm
Connection no 2 diameter (in) \| Couplings	3/8 in
Connection no 2 diameter (mm) \| Couplings	10.0 mm
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Hose end
ISO standard \| Couplings	228
Label colour code \| Gobal	1 – Dark blue
Material \| Couplings/Ferrules	Steel
Original number equivalent \| Global	H1220581-060600
Shape \| Couplings	Elbow – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	White passivated, Zinc-plated
