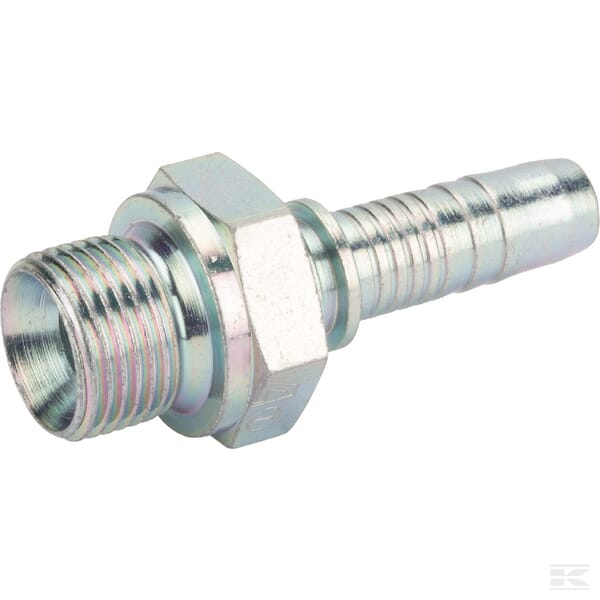

Insert DN10-3/8 BSP

Name: Insert DN10-3/8 BSP - BVS Parts Ltd
SKU: PN106
Price: 3.12 EUR
Availability: InStock

‘- Metal on metal seal

0 out of 5

(No reviews yet.)Leave a review

€3.12 Incl. VAT€2.54 Excl. VAT

Product Description

Weight	50 g
Dimensions	79 × 26 × 20 mm
Cone angle (°) \| Couplings	60 °
Connection no 1 length (mm) \| Couplings	27.8 mm
Brand \| Global	Alfagomma
Connection no 1 thread diameter (in) \| Couplings	3/8 in
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type code \| Couplings	AGR
Connection no 1 type \| Couplings/Caps/Plugs	Cone
Connection no 1 wrench size (mm) \| Couplings	22.0 mm
Connection no 2 diameter (in) \| Couplings	3/8 in
Connection no 2 diameter (mm) \| Couplings	10.0 mm
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Hose end
ISO standard \| Couplings	228, 8434-6
Label colour code \| Gobal	1 – Dark blue
Material \| Couplings/Ferrules	Steel
Shape \| Couplings	Straight – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	White passivated, Zinc-plated
