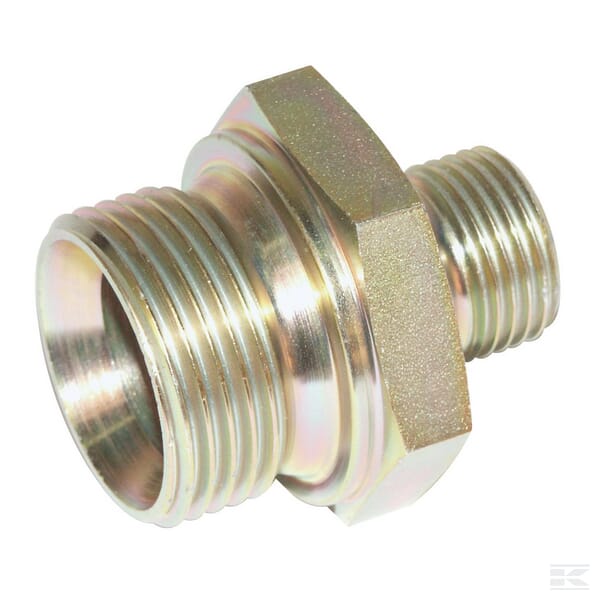

Adaptor M 1/2×3/8 BSP

Name: Adaptor M 1/2x3/8 BSP
SKU: VNB0806
Availability: InStock

‘- Internal 60º negative

0 out of 5

(No reviews yet.)Leave a review

€2.90 Incl. VAT€2.36 Excl. VAT

Product Description

Weight	61 g
Dimensions	34 × 29 × 25 mm
Cone angle (°) \| Couplings	60 °
Connection no 1 thread diameter (in) \| Couplings	1/2 in
Brand \| Global	Burnett & Hillman
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type \| Couplings/Caps/Plugs	Thread
Connection no 1 wrench size (mm) \| Couplings	27.0 mm
Connection no 2 thread diameter (in) \| Couplings	3/8 in
Connection no 2 thread type \| Couplings	BSP
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Thread
Label colour code \| Gobal	1 – Dark blue
Length (mm) \| Couplings/Lubricators/Oil drains Powered - Nipples/Couplings/Reducers	35.5 mm
Material \| Couplings/Ferrules	Steel
Max working pressure (bar) \| Couplings	340.0 bar
Shape \| Couplings	Straight – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	Galvanised
