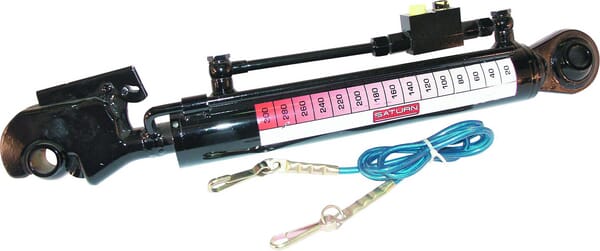

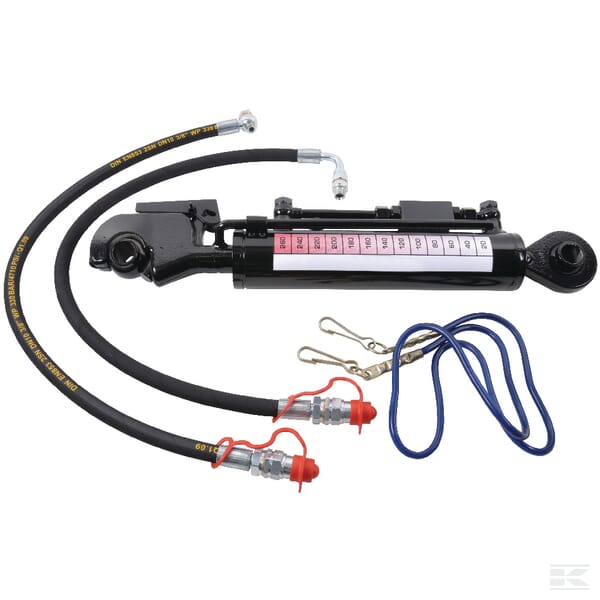

Hydraulic Toplink TCVHN, 546mm cat.2
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take 24-48 hours to deliver. – Ready to use
– Settings can be easily read
– Maintains position- Maximum radial load: 10% of the axial force
Product Description
| Weight | 15100 g |
|---|---|
| Dimensions | 1000 × 170 × 100 mm |
| Colour | Hydraulic Cylinders | Black |
| Cylinder bore diameter (mm) | Hydraulic Top Links | 63.0 mm |
| Brand | Global | Kramp |
| Cylinder material | Cylinders | Steel ST52 |
| Cylinder outside diameter (mm) | Cylinders/Support Stands Jacks (Hydraulic) | 73.0 mm |
| Max piston speed (m/s) | Hydraulic Cylinders | 0.1 m/s |
| Max working pressure (bar) | Hydraulic Cylinders/Support Stands Jacks (Hydraulic) | 250 bar |
| Max working temperature (°C) | Hydraulic Cylinders | 85 °C |
| Min length (mm) | Cylinders | 546.0 mm |
| Min working temperature (°C) | Hydraulic Cylinders | -25 °C |
| Mounting hole diameter - cylinder connection (mm) | Cylinders | 25.70 mm |
| Mounting hole diameter - rod connection (mm) | Hydraulic Cylinders | 25.70 mm |
| Mounting thread diameter - cylinder connection (in) | Hydraulic Cylinders/Support Stands Jacks (Hydraulic) | 3/8 in |
| Mounting type - cylinder connection | Cylinders | Bearing |
| Mounting type - rod connection | Hydraulic Cylinders | Hook |
| Nominal pressure (bar) | Hydraulic Cylinders/Support Stands Jacks (Hydraulic) | 200 bar |
| Oil connections distance (mm) | Hydraulic Cylinders | 269.0 mm |
| RAL colour code | Hydraulic Cylinders | 9005 |
| Rod diameter (mm) | Hydraulic Cylinders/Jacks/Cylinders - Rods | 35.0 mm |
| Rod material | Hydraulic Cylinders | Steel 20MnV6 |
| Rod surface treatment | Cylinders | Chromated |
| Stroke (mm) | Hydraulic Cylinders/Cylinders - Rods/Cylinders - Tubes | 230 mm |
| Top link category - cylinder connection | Hydraulic Top Links | 2 |
| Top link category - rod connection | Hydraulic Top Links | 2 |
