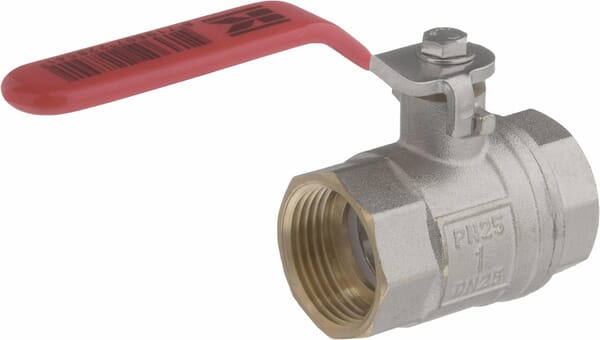

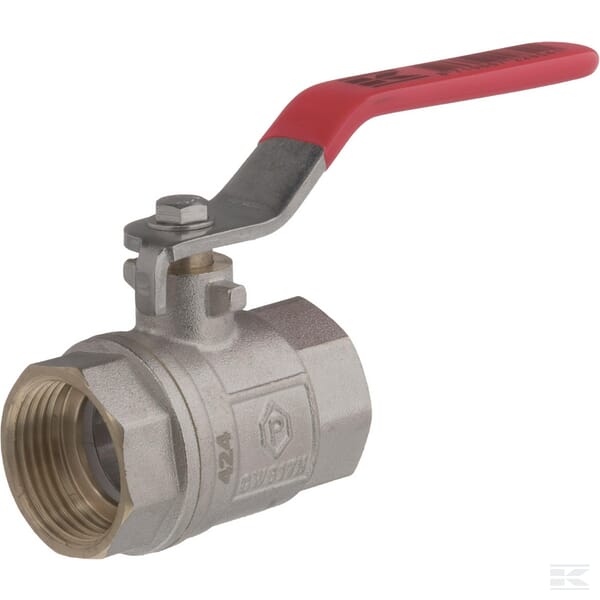

Ball valve BSP 2x female 1″ + SS handle

Name: Ball valve BSP 2x female 1" + SS handle - BVS Parts Ltd
SKU: KS1FKR
Price: 22.16 EUR
Availability: InStock

‘- 2-way ball valve with full bore
– Nickel-plated brass enclosure (CW617N, DIN 50930-6)
– Ball made from hard chrome-plated brass (CW614N)
– Stainless steel lever and bolt (AISI304)
– PTFE ball seals
– EPDM lever seals
– Conical thread according to ISO 7-1 and DIN 2999-1

Part number: KS1FKR Categories: Farming Supplies, Valves, Water Management

0 out of 5

(No reviews yet.)Leave a review

€22.16 Incl. VAT€18.02 Excl. VAT

Product Description

Weight	372 g
Dimensions	150 × 85 × 44 mm
Connection thread diameter (in) \| Valves	1 in
Connection thread length (mm) \| Valves	11.0 mm
Brand \| Global	Kramp
Connection thread type \| Valves	BSPT
Connection type - male/female \| Valves	Female
Distance Top till center bore (mm)	58.3 mm
Handle length (mm) \| Mechanical Valves/Dividers	116.0 mm
Inside diameter (mm)	23 mm
Length A (mm)	11.0 mm
Length B (mm)	11.0 mm
Length C (mm)	110 mm
Max working pressure (bar) \| Valves	25.0 bar
Outside diameter (mm)	41.5 mm
Total length (mm) \| Mechanical/Electrical Valves/Solenoids/Pressure Regulator Valve/Electric Dividers/Bypass Valves/Overflow Valves/Alternative Valve	61.0 mm
