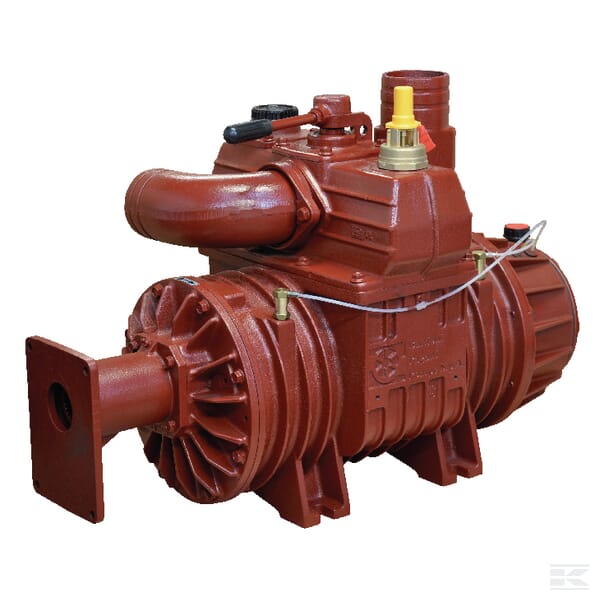

Vacuum pump, Hydraulic Drive auto-lube B.P.
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take 24-48 hours to deliver. – These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks – These pumps can generate both positive pressure and vacuum
Product Description
| Weight | 150000 g |
|---|---|
| Dimensions | 850 × 450 × 600 mm |
| Ballast air injection system | Vacuum Pumps | No |
| Crash protection system | Vacuum Pumps | No |
| Brand | Global | Battioni Pagani |
| Direction of rotation | Starters/Friction Clutches | Clockwise (CW) |
| Drive type | Vacuum Pumps | Hydraulic |
| Lubrication system type | Vacuum Pumps | Automatic |
| Max vacuum (bar) | Vacuum Pumps | 0.90 bar |
| Max. relative pressure (bar) | Vacuum Pumps | 1.5 bar |
| Max. shaft rotation (r/min) | Vacuum Pumps | 1200 r/min |
| Nominal volume flow rate (l/min) | Pumps | 14800.0 l/min |
| Power requirement by max. vacuum (kW) | Vacuum Pumps | 31.0 kW |
| Vane type | Vacuum Pumps | Standard |
| Weight (kg) | Pumps | 263.000 kg |
