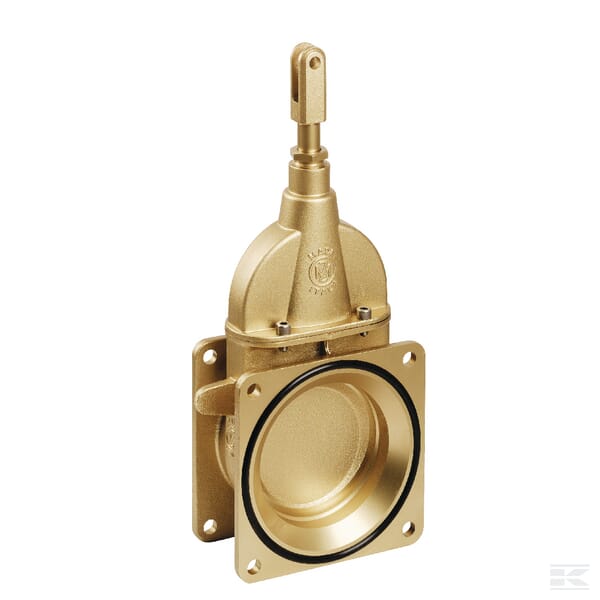

Valve 4″ with 4 bolt flange

Name: Valve 4" with 4 bolt flange - BVS Parts | Barrow Valley Spares
SKU: 4000072
Price: 210.64 EUR
Availability: InStock

Part number: 4000072 Categories: Shop & Workshop, Valves, Water Management

0 out of 5

(No reviews yet.)Leave a review

€210.64 Incl. VAT€171.25 Excl. VAT

Product Description

Weight	6300 g
Dimensions	401 × 180 × 90 mm
Flange mounting bolts/holes diameter (mm) \| Gate Valves	13.0 mm
Flange mounting bolts/holes distance (mm) \| Gate Valves	150.0 mm
Brand \| Global	MZ
Flange thickness (mm) \| Gate Valves	90.0 mm
Lever mounting holes distance (vertical) (mm) \| Gate Valves	236.0 mm
Passage hole centre to lever end distance (mm) \| Gate Valves	290.0 mm
Passage hole nominal diameter (in) \| Gate Valves - Handle Complete	4 in
Total height (mm) \| Gate Valves	380.0 mm
Total width (mm) \| Gate Valves	180.0 mm
