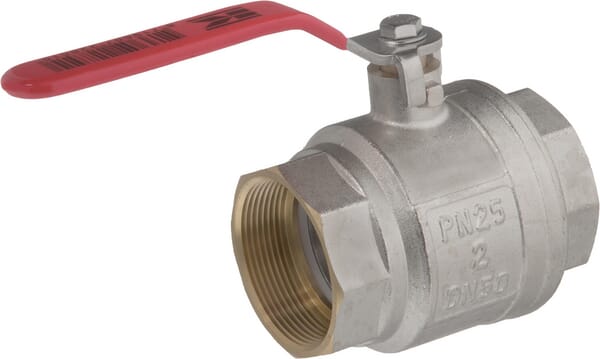

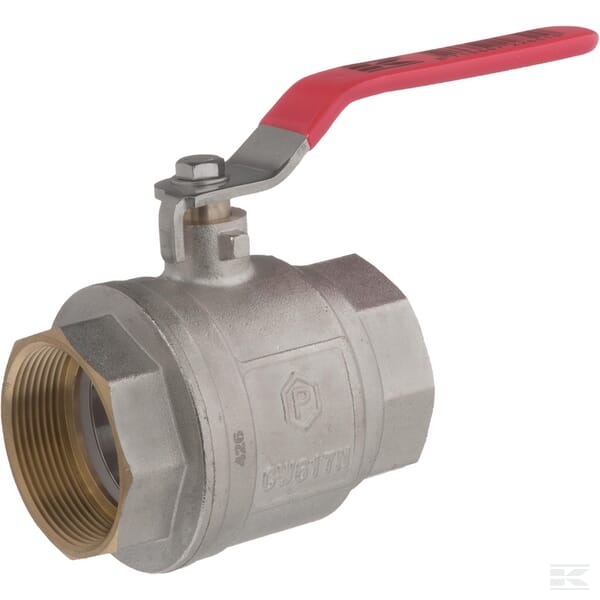

Ball valve BSP 2x female 2″ + SS handle

‘- 2-way ball valve with full bore
– Nickel-plated brass enclosure (CW617N, DIN 50930-6)
– Ball made from hard chrome-plated brass (CW614N)
– Stainless steel lever and bolt (AISI304)
– PTFE ball seals
– EPDM lever seals
– Conical thread according to ISO 7-1 and DIN 2999-1

Part number: KS2FKR Categories: , ,
0 out of 5
(No reviews yet.)Leave a review

€56.69 Excl. VAT

Quantity

Product Description

Weight 1381 g
Dimensions 200 × 125 × 80 mm
Connection thread diameter (in) | Valves

2 in
Connection thread length (mm) | Valves

17.0 mm
Brand | Global

Kramp
Connection thread type | Valves

BSPT
Connection type - male/female | Valves

Female
Distance Top till center bore (mm)

90.5 mm
Handle length (mm) | Mechanical Valves/Dividers

151.5 mm
Inside diameter (mm)

47 mm
Length A (mm)

17.0 mm
Length B (mm)

17.0 mm
Length C (mm)

145 mm
Max working pressure (bar) | Valves

25.0 bar
Outside diameter (mm)

78.5 mm
Total length (mm) | Mechanical/Electrical Valves/Solenoids/Pressure Regulator Valve/Electric Dividers/Bypass Valves/Overflow Valves/Alternative Valve

104.0 mm
