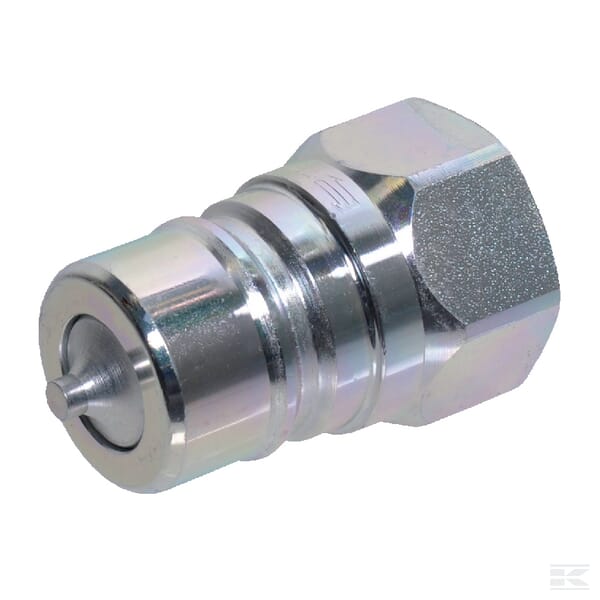

QRC male 3/4″ – 20 – 3/4 BSP

Name: QRC male 3/4" - 20 - 3/4 BSP - BVS Parts | Barrow Valley Spares
SKU: ANV34GASM
Price: 20.85 EUR
Availability: InStock

‘- Cannot be connected under pressure
– Mineral oil-based fluids
– Axial actuation of locking sleeve to rear (single acting)
– Induction hardened stressed parts
– No breakaway function
– Large number of latching balls

Part number: ANV34GASM Categories: Hydraulic Fittings & Couplings, Hydraulics, Hydraulics & Transmission

0 out of 5

(No reviews yet.)Leave a review

€20.85 Incl. VAT€16.95 Excl. VAT

Product Description

Weight	177 g
Dimensions	66 × 40 × 40 mm
Body size (in) \| Quickcouplings push-pull	3/4 in
Body size (mm) \| Quickcouplings push-pull	20.0 mm
Brand \| Global	Faster
Connectable under pressure \| Couplings	No
Connection no 1 diameter (inch) \| Couplings	1.14 in
Connection no 1 diameter (mm) \| Couplings/Exhaust Fittings	29.0 mm
Connection no 1 hex size (in) \| Couplings	1.34 in
Connection no 1 hex size (mm) \| Couplings	34.0 mm
Connection no 1 thread diameter (in) \| Couplings	3/4 in
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type \| Couplings/Caps/Plugs	Quick coupling
Connection no 2 thread diameter (in) \| Couplings	3/4 in
Connection no 2 thread type \| Couplings	BSPP
Connection no 2 threads per inch \| Couplings	14
Connection no 2 type - male/female \| Couplings	Female
Connection no 2 type \| Couplings	Thread
Flow rate at 2 bar (l/min) \| Quickcouplings push-pull	180.0 l/min
ISO standard \| Couplings	1179-1, 724-A
Label colour code \| Gobal	0 – Red
Length (mm) \| Couplings/Lubricators/Oil drains Powered - Nipples/Couplings/Reducers	55.0 mm
Material \| Couplings/Ferrules	Steel
Max working temperature (°C) \| Couplings	125 °C
Min working temperature (°C) \| Couplings	-25 °C
Outside diameter (in) \| Couplings	1.50 in
Outside diameter (mm) \| Couplings	38.00 mm
Quick connection locking type \| Quickcouplings push-pull	Radial balls
Quick connection working type \| Quickcouplings push-pull	Sleeve retraction
Quick disconnection working type \| Quickcouplings push-pull	Sleeve retraction
Seal material \| Couplings/Nozzles	Nitrile rubber [NBR]
Series \| Couplings	ANV
Shape \| Couplings	Straight – 2 connection sides
Size code \| Caps/Plugs/Couplings	BG 4
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	Chromium-plated
Total length (in) \| Couplings	2.17 in
Total length (mm) \| Couplings	110.0 mm
Valve type \| Couplings	Poppet
Weight (g) \| Couplings	180.5 g
Working pressure (bar) \| Couplings	300 bar
