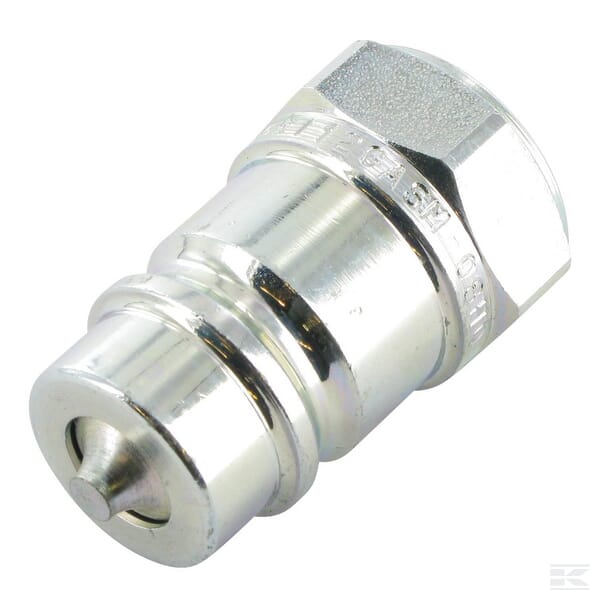

QRC male 1/2″ – 12,5 – 1/2 BSP

Name: QRC male 1/2" - 12,5 - 1/2 BSP - BVS Parts | Barrow Valley Spares
SKU: NV12GASM
Price: 6.96 EUR
Availability: InStock

‘- Cannot be connected under pressure
– Mineral oil-based fluids
– Axial actuation of locking sleeve to rear (single acting)
– Induction hardened stressed parts
– No breakaway function
– Large number of latching balls

Part number: NV12GASM Categories: Hydraulic Fittings & Couplings, Hydraulics, Hydraulics & Transmission

0 out of 5

(No reviews yet.)Leave a review

€6.96 Incl. VAT€5.66 Excl. VAT

Product Description

Weight	80 g
Dimensions	49 × 30 × 27 mm
Body size (in) \| Quickcouplings push-pull	1/2 in
Body size (mm) \| Quickcouplings push-pull	12.5 mm
Brand \| Global	Faster
Connectable under pressure \| Couplings	No
Connection no 1 diameter (inch) \| Couplings	0.81 in
Connection no 1 diameter (mm) \| Couplings/Exhaust Fittings	20.5 mm
Connection no 1 hex size (in) \| Couplings	1.06 in
Connection no 1 hex size (mm) \| Couplings	27.0 mm
Connection no 1 thread diameter (in) \| Couplings	1/2 in
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type \| Couplings/Caps/Plugs	Quick coupling
Connection no 2 thread diameter (in) \| Couplings	1/2 in
Connection no 2 thread type \| Couplings	BSPP
Connection no 2 threads per inch \| Couplings	14
Connection no 2 type - male/female \| Couplings	Female
Connection no 2 type \| Couplings	Thread
Flow rate at 2 bar (l/min) \| Quickcouplings push-pull	75.0 l/min
ISO standard \| Couplings	7241-1-A
Label colour code \| Gobal	0 – Red
Length (mm) \| Couplings/Lubricators/Oil drains Powered - Nipples/Couplings/Reducers	44.0 mm
Material \| Couplings/Ferrules	Steel
Max working temperature (°C) \| Couplings	125 °C
Min working temperature (°C) \| Couplings	-25 °C
Outside diameter (in) \| Couplings	1.18 in
Outside diameter (mm) \| Couplings	30.00 mm
Quick connection locking type \| Quickcouplings push-pull	Radial balls
Quick connection working type \| Quickcouplings push-pull	Sleeve retraction
Quick disconnection working type \| Quickcouplings push-pull	Sleeve retraction
Seal material \| Couplings/Nozzles	Nitrile rubber [NBR]
Series \| Couplings	NV
Shape \| Couplings	Straight – 2 connection sides
Size code \| Caps/Plugs/Couplings	BG 3
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	Chromium-plated
Total length (in) \| Couplings	1.73 in
Total length (mm) \| Couplings	88.0 mm
Valve type \| Couplings	Poppet
Weight (g) \| Couplings	81.2 g
Working pressure (bar) \| Couplings	300 bar

QRC male 1/2″ – 12,5 – 1/2 BSP
