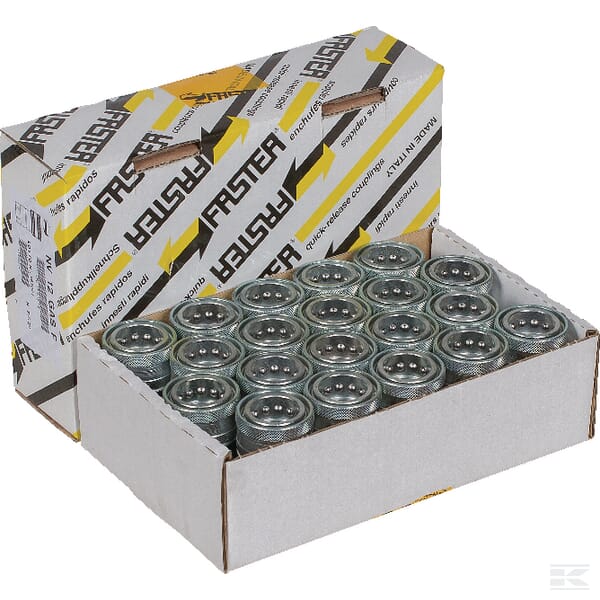

QRC female 1/2″ – 12,5 – 1/2 BSP
‘- Axial actuation of locking sleeve to rear (single acting)
– Induction hardened stressed parts
– No breakaway function
– Large number of latching balls
– Mineral oil-based fluids- Easy to operate
– Simple coupling with very light spring in coupling sleeve
Product Description
| Weight | 5195 g |
|---|---|
| Dimensions | 235 × 155 × 70 mm |
| Body size (in) | Quickcouplings push-pull | 1/2 in |
| Body size (mm) | Quickcouplings push-pull | 12.5 mm |
| Brand | Global | Faster |
| Connectable under pressure | Couplings | No |
| Connection no 1 diameter (mm) | Couplings/Exhaust Fittings | 38.0 mm |
| Connection no 1 hex size (in) | Couplings | 1.06 in |
| Connection no 1 hex size (mm) | Couplings | 27.0 mm |
| Connection no 1 thread diameter (in) | Couplings | 1/2 in |
| Connection no 1 thread type | Couplings | BSP |
| Connection no 1 type - male/female | Couplings | Female |
| Connection no 1 type | Couplings/Caps/Plugs | Quick coupling |
| Connection no 2 thread diameter (in) | Couplings | 1/2 in |
| Connection no 2 thread type | Couplings | BSPP |
| Connection no 2 threads per inch | Couplings | 14 |
| Connection no 2 type - male/female | Couplings | Female |
| Connection no 2 type | Couplings | Thread |
| Content per multi-package (pcs) | Global | 20 pcs |
| Flow rate at 2 bar (l/min) | Quickcouplings push-pull | 75.0 l/min |
| ISO standard | Couplings | 7241-A |
| Label colour code | Gobal | 1 – Dark blue |
| Material | Couplings/Ferrules | Steel |
| Max working temperature (°C) | Couplings | 125 °C |
| Min working temperature (°C) | Couplings | -25 °C |
| Outside diameter (in) | Couplings | 1.50 in |
| Outside diameter (mm) | Couplings | 38.0 mm |
| Quick connection locking type | Quickcouplings push-pull | Radial balls |
| Quick connection working type | Quickcouplings push-pull | Sleeve retraction |
| Quick disconnection working type | Quickcouplings push-pull | Sleeve retraction |
| Seal material | Couplings/Nozzles | Nitrile rubber [NBR], Teflon (PTFE) |
| Series | Couplings | NV |
| Shape | Couplings | Straight – 2 connection sides |
| Size code | Caps/Plugs/Couplings | BG 3 |
| Surface treatment | Couplings/Ferrules/Nipples/Reducers | White passivated |
| Total length (in) | Couplings | 2.60 in |
| Total length (mm) | Couplings | 88.0 mm |
| Valve type | Couplings | Poppet |
| Weight (g) | Couplings | 252.3 g |
| Working pressure (bar) | Couplings | 300 bar |
