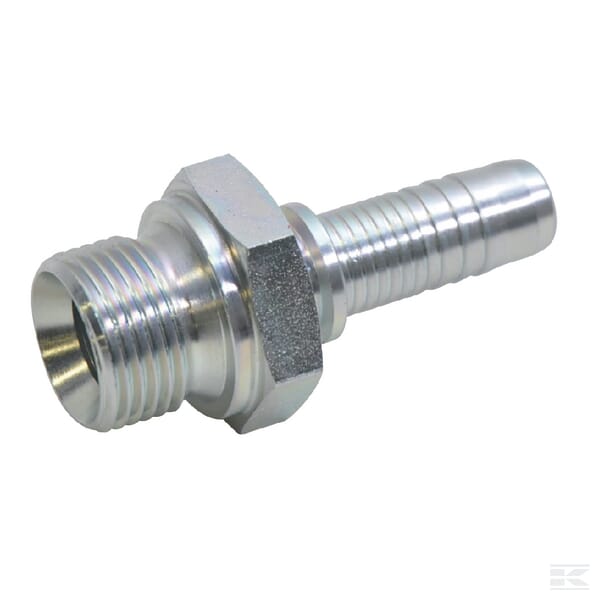

Insert DN10-1/2 BSP

Name: Insert DN10-1/2 BSP - BVS Parts | Barrow Valley Spares
SKU: PN108
Price: 3.53 EUR
Availability: InStock

‘- Metal on metal seal

0 out of 5

(No reviews yet.)Leave a review

€3.53 Incl. VAT€2.87 Excl. VAT

Product Description

Weight	77 g
Dimensions	60 × 30 × 30 mm
Cone angle (°) \| Couplings	60 °
Connection no 1 length (mm) \| Couplings	31.3 mm
Brand \| Global	Alfagomma
Connection no 1 thread diameter (in) \| Couplings	1/2 in
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type code \| Couplings	AGR
Connection no 1 type \| Couplings/Caps/Plugs	Cone
Connection no 1 wrench size (mm) \| Couplings	27.0 mm
Connection no 2 diameter (in) \| Couplings	3/8 in
Connection no 2 diameter (mm) \| Couplings	10.0 mm
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Hose end
ISO standard \| Couplings	228, 8434-6
Label colour code \| Gobal	1 – Dark blue
Material \| Couplings/Ferrules	Steel
Shape \| Couplings	Straight – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	White passivated, Zinc-plated
