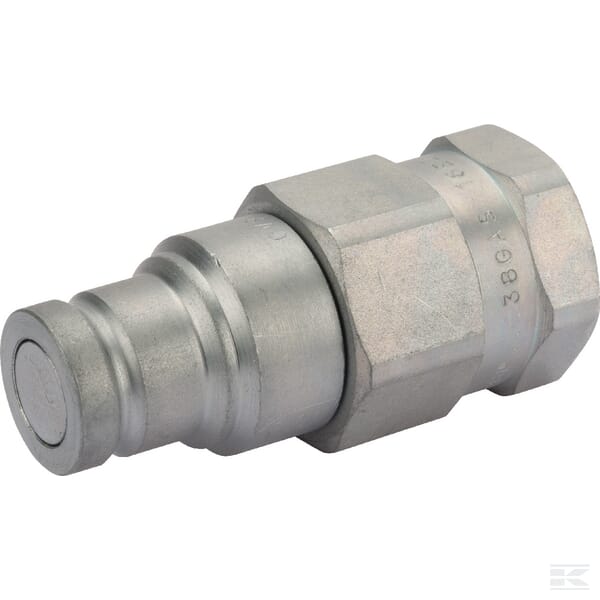

Flat Faced Coupling male 3/8″-3/8″ BSP

Name: Flat Faced Coupling male 3/8"-3/8" BSP - BVS Parts | Barrow Valley Spares
SKU: FFH0638GASM
Price: 21.46 EUR
Availability: InStock

‘- Very high corrosion resistance
– Locks on both sides
– Induction hardened stressed parts
– Cannot be connected under pressure
– Mineral oil-based fluids

Part number: FFH0638GASM Categories: Hydraulic Fittings & Couplings, Hydraulics, Hydraulics & Transmission

0 out of 5

(No reviews yet.)Leave a review

€21.46 Incl. VAT€17.45 Excl. VAT

Product Description

Weight	234 g
Dimensions	70 × 31 × 30 mm
Body size (in) \| Quickcouplings push-pull	3/8 in
Body size (mm) \| Quickcouplings push-pull	10.0 mm
Brand \| Global	Faster
Connectable under pressure \| Couplings	No
Connection no 1 diameter (inch) \| Couplings	0.78 in
Connection no 1 diameter (mm) \| Couplings/Exhaust Fittings	19.7 mm
Connection no 1 hex size (in) \| Couplings	1.18 in
Connection no 1 hex size (mm) \| Couplings	30.0 mm
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type \| Couplings/Caps/Plugs	Quick coupling
Connection no 2 thread diameter (in) \| Couplings	3/8 in
Connection no 2 thread type \| Couplings	BSPP
Connection no 2 threads per inch \| Couplings	19
Connection no 2 type - male/female \| Couplings	Female
Connection no 2 type \| Couplings	Thread
Flow rate at 2 bar (l/min) \| Quickcouplings push-pull	350.0 l/min
ISO standard \| Couplings	16028
Label colour code \| Gobal	1 – Dark blue
Material \| Couplings/Ferrules	Carbon steel
Max working temperature (°C) \| Couplings	125 °C
Min working temperature (°C) \| Couplings	-25 °C
Outside diameter (in) \| Couplings	1.30 in
Outside diameter (mm) \| Couplings	33.00 mm
Quick connection locking type \| Quickcouplings push-pull	Radial balls
Quick connection working type \| Quickcouplings push-pull	Push to connect
Quick disconnection working type \| Quickcouplings push-pull	Sleeve retraction
Seal material \| Couplings/Nozzles	Nitrile rubber [NBR]
Series \| Couplings	FFH
Shape \| Couplings	Straight – 2 connection sides
Size code \| Caps/Plugs/Couplings	BG 2
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	Nickel, Zinc
Total length (in) \| Couplings	2.69 in
Total length (mm) \| Couplings	68.0 mm
Valve type \| Couplings	Flat
Weight (g) \| Couplings	230.8 g
Working pressure (bar) \| Couplings	50 bar
