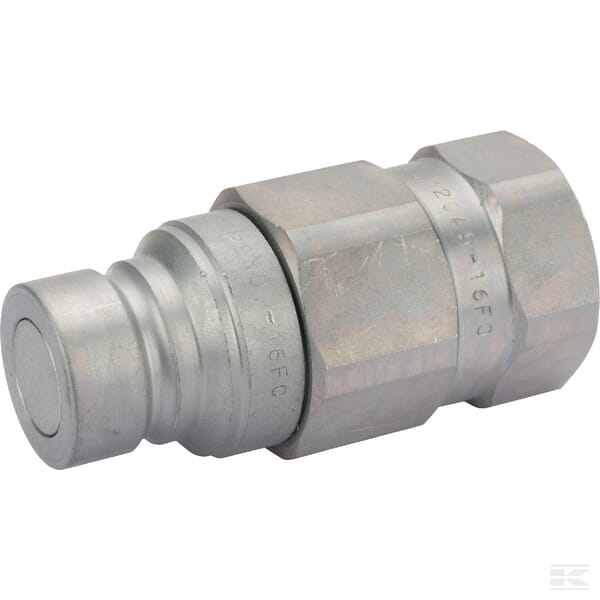

Flat Faced Coupling male 1/2″-1/2″ BSP

Name: Flat Faced Coupling male 1/2"-1/2" BSP - BVS Parts | Barrow Valley Spares
SKU: FFH0812GASM
Price: 33.03 EUR
Availability: InStock

‘- Very high corrosion resistance
– Locks on both sides
– Induction hardened stressed parts
– Cannot be connected under pressure
– Mineral oil-based fluids

Part number: FFH0812GASM Categories: Hydraulic Fittings & Couplings, Hydraulics, Hydraulics & Transmission

0 out of 5

(No reviews yet.)Leave a review

€33.03 Incl. VAT€26.85 Excl. VAT

Product Description

Weight	318 g
Dimensions	76 × 36 × 34 mm
Body size (in) \| Quickcouplings push-pull	1/2 in
Body size (mm) \| Quickcouplings push-pull	12.5 mm
Brand \| Global	Faster
Connectable under pressure \| Couplings	No
Connection no 1 diameter (inch) \| Couplings	0.96 in
Connection no 1 diameter (mm) \| Couplings/Exhaust Fittings	24.5 mm
Connection no 1 hex size (in) \| Couplings	1.34 in
Connection no 1 hex size (mm) \| Couplings	34.0 mm
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type \| Couplings/Caps/Plugs	Quick coupling
Connection no 2 thread diameter (in) \| Couplings	1/2 in
Connection no 2 thread type \| Couplings	BSPP
Connection no 2 threads per inch \| Couplings	14
Connection no 2 type - male/female \| Couplings	Female
Connection no 2 type \| Couplings	Thread
Flow rate at 2 bar (l/min) \| Quickcouplings push-pull	110.0 l/min
ISO standard \| Couplings	16028
Label colour code \| Gobal	1 – Dark blue
Material \| Couplings/Ferrules	Carbon steel
Max working temperature (°C) \| Couplings	125 °C
Min working temperature (°C) \| Couplings	-25 °C
Outside diameter (in) \| Couplings	1.46 in
Outside diameter (mm) \| Couplings	37.00 mm
Quick connection locking type \| Quickcouplings push-pull	Radial balls
Quick connection working type \| Quickcouplings push-pull	Push to connect
Quick disconnection working type \| Quickcouplings push-pull	Sleeve retraction
Seal material \| Couplings/Nozzles	Nitrile rubber [NBR]
Series \| Couplings	FFH
Shape \| Couplings	Straight – 2 connection sides
Size code \| Caps/Plugs/Couplings	BG 3
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	Nickel, Zinc
Total length (in) \| Couplings	2.95 in
Total length (mm) \| Couplings	78.0 mm
Valve type \| Couplings	Flat
Weight (g) \| Couplings	333.3 g
Working pressure (bar) \| Couplings	350 bar
