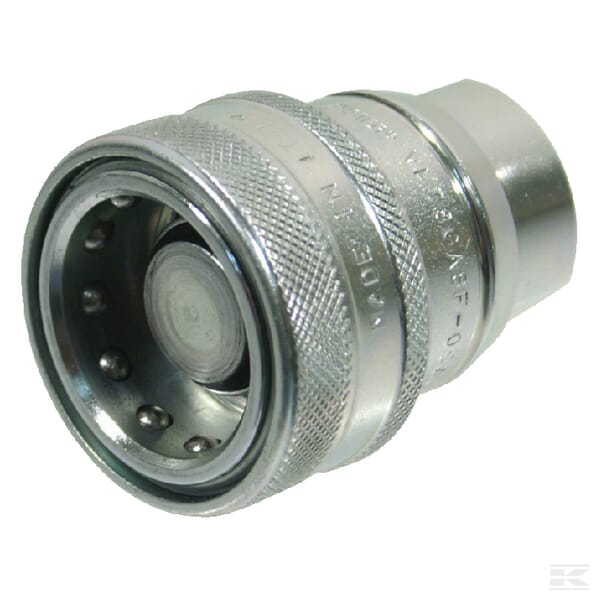

Female Brake coupling 1/2″ BSP
‘- No air pockets during coupling
– Cannot be connected under pressure
– Coupling must be screwed as tight as possible
– Screw coupling with special flat valve
Product Description
| Weight | 352 g |
|---|---|
| Dimensions | 64 × 43 × 42 mm |
| Body size (in) | Quickcouplings push-pull | 3/8 in |
| Body size (mm) | Quickcouplings push-pull | 10.0 mm |
| Brand | Global | Faster |
| BS standard | Couplings | 5380 |
| Connectable under pressure | Couplings | No |
| Connection no 1 diameter (mm) | Couplings/Exhaust Fittings | 44.0 mm |
| Connection no 1 hex size (in) | Couplings | 1.06 in |
| Connection no 1 hex size (mm) | Couplings | 27.0 mm |
| Connection no 1 thread diameter (in) | Couplings | 1/2 in |
| Connection no 1 thread type code | Couplings | 0 |
| Connection no 1 thread type | Couplings | BSP |
| Connection no 1 type - male/female | Couplings | Female |
| Connection no 1 type | Couplings/Caps/Plugs | Quick coupling |
| Connection no 2 thread diameter (in) | Couplings | 1/2 in |
| Connection no 2 thread type | Couplings | BSPP |
| Connection no 2 threads per inch | Couplings | 14 |
| Connection no 2 type - male/female | Couplings | Female |
| Connection no 2 type | Couplings | Thread |
| Flow rate at 2 bar (l/min) | Quickcouplings push-pull | 40.0 l/min |
| ISO standard | Couplings | 5676 |
| Label colour code | Gobal | 1 – Dark blue |
| Material | Couplings/Ferrules | Steel |
| Max working temperature (°C) | Couplings | 125 °C |
| Min working temperature (°C) | Couplings | -25 °C |
| Outside diameter (in) | Couplings | 1.73 in |
| Outside diameter (mm) | Couplings | 44.0 mm |
| Quick connection locking type | Quickcouplings push-pull | Radial balls |
| Quick connection working type | Quickcouplings push-pull | Sleeve retraction |
| Quick disconnection working type | Quickcouplings push-pull | Sleeve retraction |
| Seal material | Couplings/Nozzles | Nitrile rubber [NBR], Teflon (PTFE) |
| Series | Couplings | VF |
| Shape | Couplings | Straight – 2 connection sides |
| Surface treatment | Couplings/Ferrules/Nipples/Reducers | White passivated |
| Total length (in) | Couplings | 2.32 in |
| Total length (mm) | Couplings | 54.5 mm |
| Valve type | Couplings | Flat |
| Weight (g) | Couplings | 379.7 g |
| Working pressure (bar) | Couplings | 150 bar |
