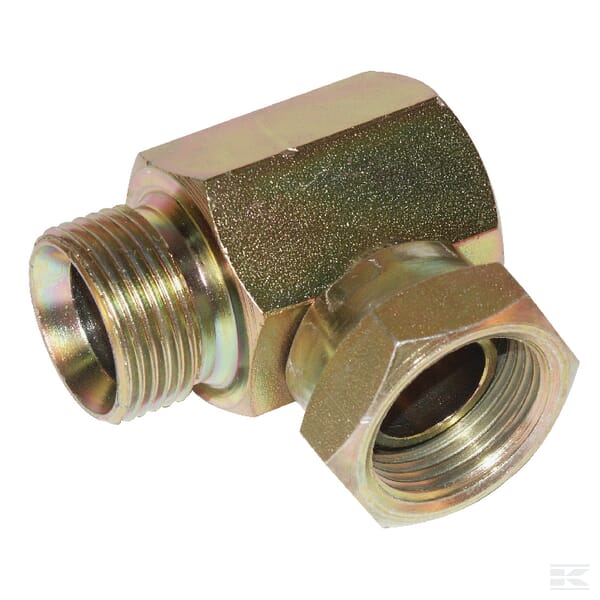

Compact elbow M/F 3/8 BSP

Name: Compact elbow M/F 3/8 BSP - BVS Parts | Barrow Valley Spares
SKU: MF9006K
Price: 10.38 EUR
Availability: InStock

‘- The sealing is obtained/made through a 60° cone
– Only in combination with nipples with counter-cone 60°

0 out of 5

(No reviews yet.)Leave a review

€10.38 Incl. VAT€8.44 Excl. VAT

Product Description

Weight	123 g
Dimensions	39 × 39 × 25 mm
Angle (°) \| Couplings	90.0 °
Cone angle (°) \| Couplings	60 °
Brand \| Global	Burnett & Hillman
Connection no 1 center to end distance (mm) \| Couplings	40.0 mm
Connection no 1 thread diameter (in) \| Couplings	3/8 in
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Female
Connection no 1 type \| Couplings/Caps/Plugs	Swivel nut
Connection no 1 wrench size (mm) \| Couplings	22.0 mm
Connection no 2 thread diameter (in) \| Couplings	3/8 in
Connection no 2 thread type \| Couplings	BSP
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Thread
Label colour code \| Gobal	1 – Dark blue
Material \| Couplings/Ferrules	Steel
Max working pressure (bar) \| Couplings	380.0 bar
Shape \| Couplings	Elbow – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	Galvanised
