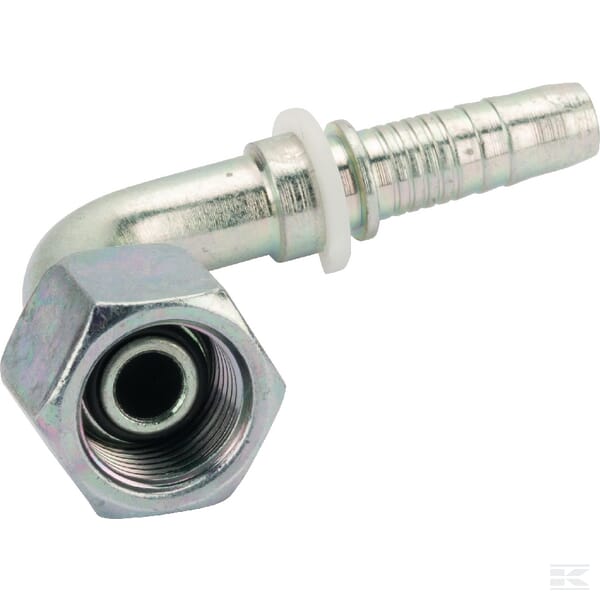

Insert DN10-3/8 BSP-90°

Name: Insert DN10-3/8 BSP-90° - BVS Parts | Barrow Valley Spares
SKU: PF10690
Price: 4.35 EUR
Availability: InStock

‘- O-ring seal

0 out of 5

(No reviews yet.)Leave a review

€4.35 Incl. VAT€3.54 Excl. VAT

Product Description

Weight	77 g
Dimensions	75 × 47 × 23 mm
Angle (°) \| Couplings	90.0 °
Cone angle (°) \| Couplings	60 °
Brand \| Global	Alfagomma
Connection center to insert distance (mm) \| Couplings	34.8 mm
Connection no 1 center to end distance (mm) \| Couplings	42.0 mm
Connection no 1 thread diameter (in) \| Couplings	3/8 in
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Female
Connection no 1 type code \| Couplings	DKOR
Connection no 1 type \| Couplings/Caps/Plugs	Cone
Connection no 1 wrench size (mm) \| Couplings	22.0 mm
Connection no 2 diameter (in) \| Couplings	3/8 in
Connection no 2 diameter (mm) \| Couplings	10.0 mm
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Hose end
ISO standard \| Couplings	228
Label colour code \| Gobal	1 – Dark blue
Material \| Couplings/Ferrules	Steel
Original number equivalent \| Global	H1220893-060600
Shape \| Couplings	Elbow – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	White passivated, Zinc-plated
